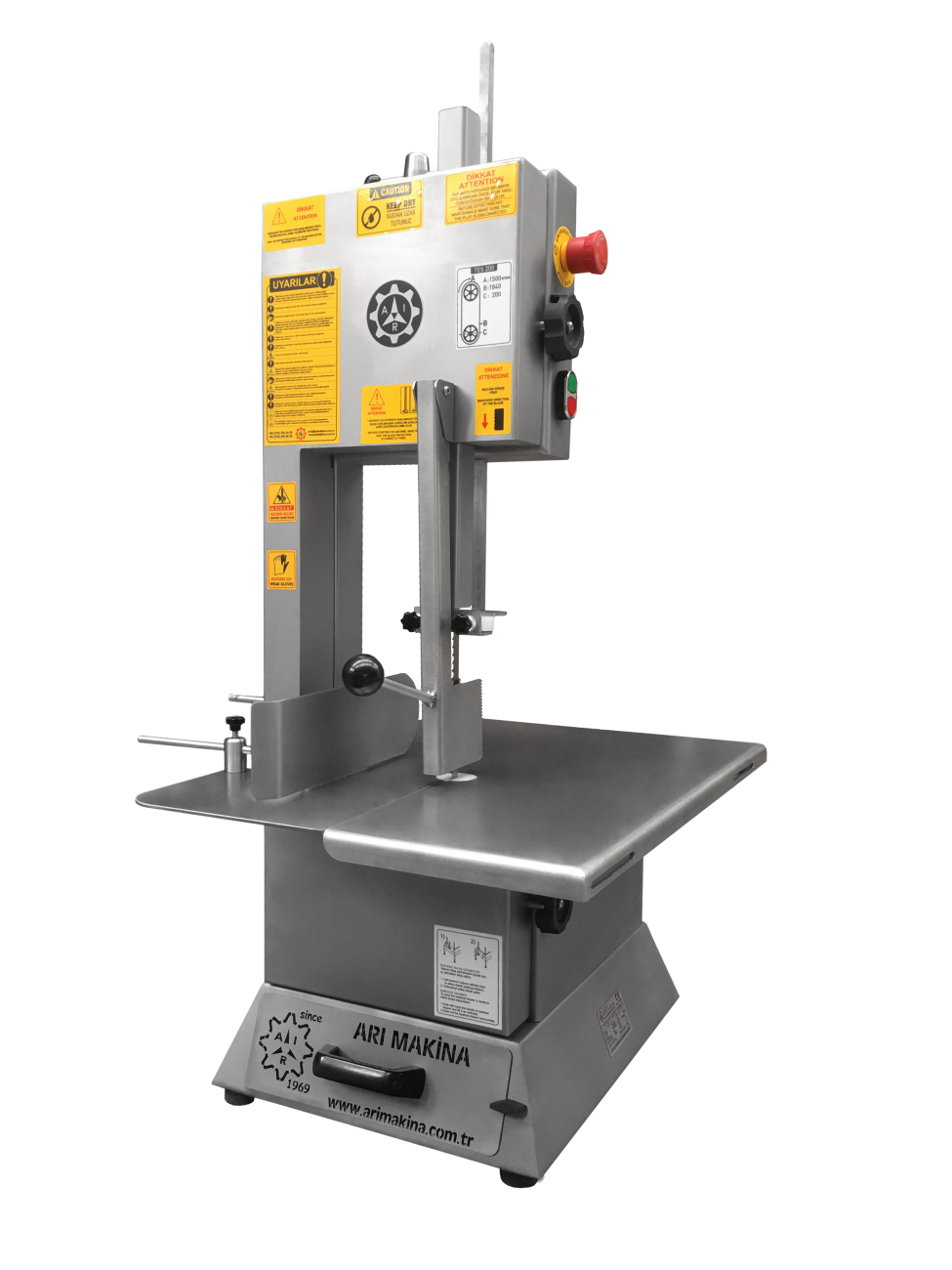

Our meat and bone saws are specially designed for slicing fresh or frozen meat, bones, fish, poultry, and large-size vegetable fruits for Butcher, Market, Slaughterhouse and Meat Processing Plants.
- It is made entirely of AISI 304 quality stainless steel.
- Electromagnetic motor brake and safety switch. (Optional)
- Since the operator safety is considered to be the highest, the saw blade stops as soon as the machine is closed thanks to the electromagnetic engine brake. (Optional)
- It is manufactured as 380 volts as standard. It can be produced optionally as 220 Volts.
- Emergency Stop and Start-Stop buttons are IP 65 and are resistant to water and dust.
- Manufactured in accordance with CE standards.
- Specially designed meat pushing sled can be folded when not in use. (Optional)
- Blade cutting distance can be adjusted easily.
Specifications
| Engine voltage | 230 / 400 / 480 V. |
| Amps | 3.8 A. |
| Frequency | 50 / 50 / 60 Hz. |
| Engine power | 1.5 kW. |
| Insurance current | 16 A. |
| Knife speed | 17 m/s. |
| Mak. cutting width | 250 mm. |
| Mak. cutting height | 315 mm. |
| Mak. cutting depth | 224 mm. |
| Thesis measures (E x B) | 630 x 465 mm. |
| Ribbon saw length | 1850 mm. |
| Pulley diameter | 200 mm. |
| Weight | 65 kg. |
| Machine dimensions (E x B x H) | 660 x 530 x 1100 mm. |
