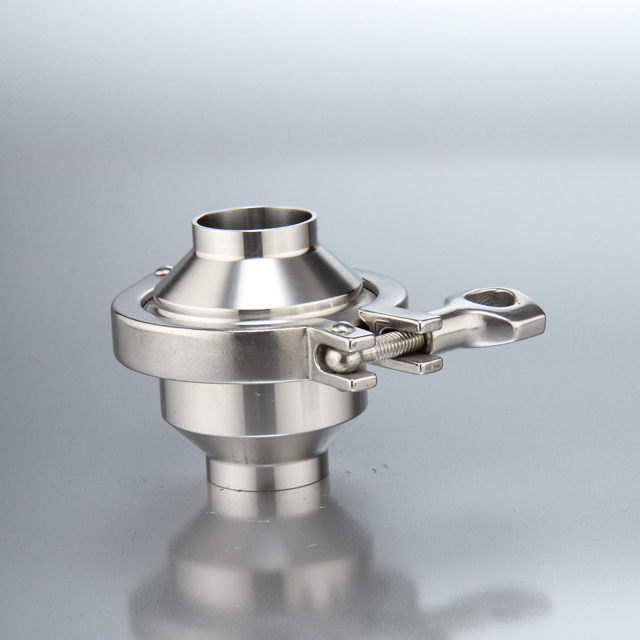

The Stainless Steel Check Valve is designed to prevent backflow and ensure one-way flow in various industrial and commercial applications. It features a unique design that allows for efficient and reliable operation in high-pressure and high-temperature environments.
Description:
The Stainless Steel Check Valve is a high-quality valve designed to prevent backflow and ensure one-way flow in various industrial and commercial applications. Made from premium-grade stainless steel, this valve is highly durable, corrosion-resistant, and able to withstand high temperatures and pressures.
The valve features a unique design that allows for efficient and reliable operation in high-pressure and high-temperature environments. Its compact size and easy-to-use design make it an excellent choice for various applications, including the chemical, pharmaceutical, and petrochemical industries.
The Stainless Steel Check Valve is available in a range of sizes to fit various piping systems, and it is easy to install and maintain. Its high-quality construction ensures reliable and consistent performance, making it an essential component of any piping system that requires efficient and effective flow control.
If you need to prevent backflow and ensure one-way flow in your piping system, the Stainless Steel Check Valve is an excellent choice. Its unique design allows for efficient and reliable operation in high-pressure and high-temperature environments. Its durable construction, reliable performance, and easy installation and maintenance make it an essential component of any piping system that requires efficient and effective flow control.
Call to Action:
If you’re looking for a high-quality and reliable way to prevent backflow and ensure one-way flow in your piping system, the Stainless Steel Check Valve is the perfect solution. Contact us today to learn more about this product and how it can benefit your operations.
Application
Check – Valve (calve) is designed for use in process piping to prevent reverse flow, called “non-return valve” in control valves,
Working Principle
A check valve opens when the pressure under the valve plug exceeds the pressure above the plug force. When pressure is achieved, the valve closes.
Material
Materials: AISI-304 or AISI-316L
Standard Gasket Material: EPDM compatible with FDA 21CFR177.2600
Options
Gaskets can be Silicone or Viton, compatible with all FDA 21CFR177.2600.
Connection Shape: Source, Ferrule, Liner, Nut, Male or Flange or others on request.
Design Features
The stainless steel valve body provides non-porous, smooth surfaces and dimensionally smooth structure. The valve body is in two parts, mounted with a standard clamp and closed with a standard gasket. The self-unloading design of the lower valve body allows the product to fry. The ribbed construction of the stainless steel disc is heavy pressure resistant, minimizes flow resistance and also acts as a guide for the valve plug. All parts and gaskets are made of FDA approved materials.

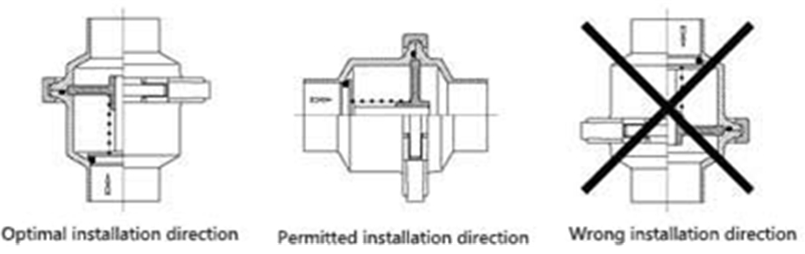

The image below shows the default configuration. Horizontal positions are also allowed.
Technical Specification
- Maximum pressure: 10bar (145psi)
- Opening pressure: 0.3bar (DN25) 0.2bar (DN32-40) 0.1bar (DN50-100).
- The opening pressure can be adjusted as required by customers.
- Working temperature: 14 ~ 248°F (-10 ~ 120°C), EPDM
