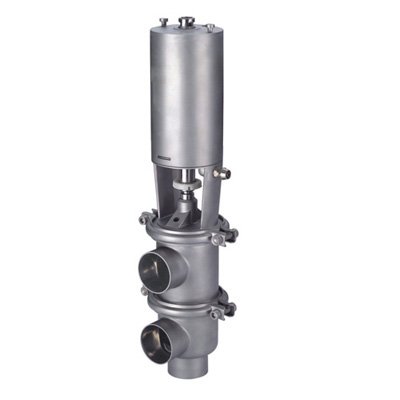

The Pneumatic 3-Way Stainless Butterfly Valve is a valve designed to control the flow of fluid or gas in three different directions using compressed air. The valve features three ports or openings, allowing for the fluid or gas to be directed to different locations, and the pneumatic actuator allows for precise control over the valve’s position.
Description:
The Pneumatic 3-Way Stainless Butterfly Valve is a high-quality valve designed to regulate the flow of fluids or gases in piping systems using compressed air. Made from premium-grade stainless steel, this valve is highly durable, corrosion-resistant, and able to withstand high temperatures and pressures.
The butterfly valve is named for its unique design, which features a disc or vane that rotates around a central axis to control the flow of fluid or gas. The 3-way configuration of this butterfly valve allows for the fluid or gas to be directed to different locations, providing versatility and flexibility in the piping system.
The Pneumatic 3-Way Stainless Butterfly Valve is available in a range of sizes to fit various piping systems, and it is easy to install and maintain. Its high-quality construction ensures reliable and consistent performance, making it an ideal choice for a variety of industrial and commercial applications, including the chemical, petrochemical, and pharmaceutical industries.
Whether you need to direct fluid or gas flow in three different directions or simply require precise control over the flow direction in your piping system, the Pneumatic 3-Way Stainless Butterfly Valve is an excellent choice. Its durable construction, reliable performance, and versatility make it an essential component of any piping system that requires flexibility and precise control over fluid or gas flow.
Application
The 3-way Pneumatic Butterfly valve is a type of flow controller used to stop the fluid flowing from part of a fluid start or pipe and direct the product to the other line on the line
beverage, dairy products, beer, pharmacy and medicine industries are the main areas of use.
Material
Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicone, EPDM, VITON, NBR
Valve seal is compatible with FDA 21CFR177.2600
Standard Design
Standard: DIN, SMS, ISO
DN100 / 4 “dimensions from DN25 / 1” are available
Connection shape: Source – Ferrule – Liner +Somun – Male or Flange or others on request.
Handle: plastic pull arm (4 positions) or plastic/stainless steel
Actuator: pneumatic stainless steel actuator (vertical type) electric actuator.
Control: position sensor, C-ball controller, C-ball controller (AS-I)
Technical Specification
Maximum pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
Feed pressure for air actuator: 70 ~ 115psi
Parameter | |||
| Steel material | Product wet steel parts | AISI304L / 316L (1.4306 / 1.4404) | With the material inspection report |
| Other steel parts | AISI 304 | ||
| Sealing material | Standard | Epdm | All sealants comply with FDA 21CFR117.2600 |
| Options | VMQ / FPM | ||
| Pressure | Working pressure | ≤10bar (145psi) | |
| Air actuator’s feed pressure | 5 ~ 8bar (70 ~ 116psi) | ||
| Temperature | Working temperature | EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ: -58 ~ 356°F (-50 ~ +180°C) FPM: -22 ~ 446°F (-30 ~ +230°C) Other materials are available on request | |
| Sterilization temperature | 302°F (150°C, Max. 20 min) | ||
| Surface treatment | Internal surface treatment | Ra 16 ~ 32μin (0.4 ~ 0.8μm) | |
| Outer surface treatment | Ra32 ~ 64μin (0.8 ~ 1.6μm) | ||
| Connection | Welding diameter | The source ends: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc | |
