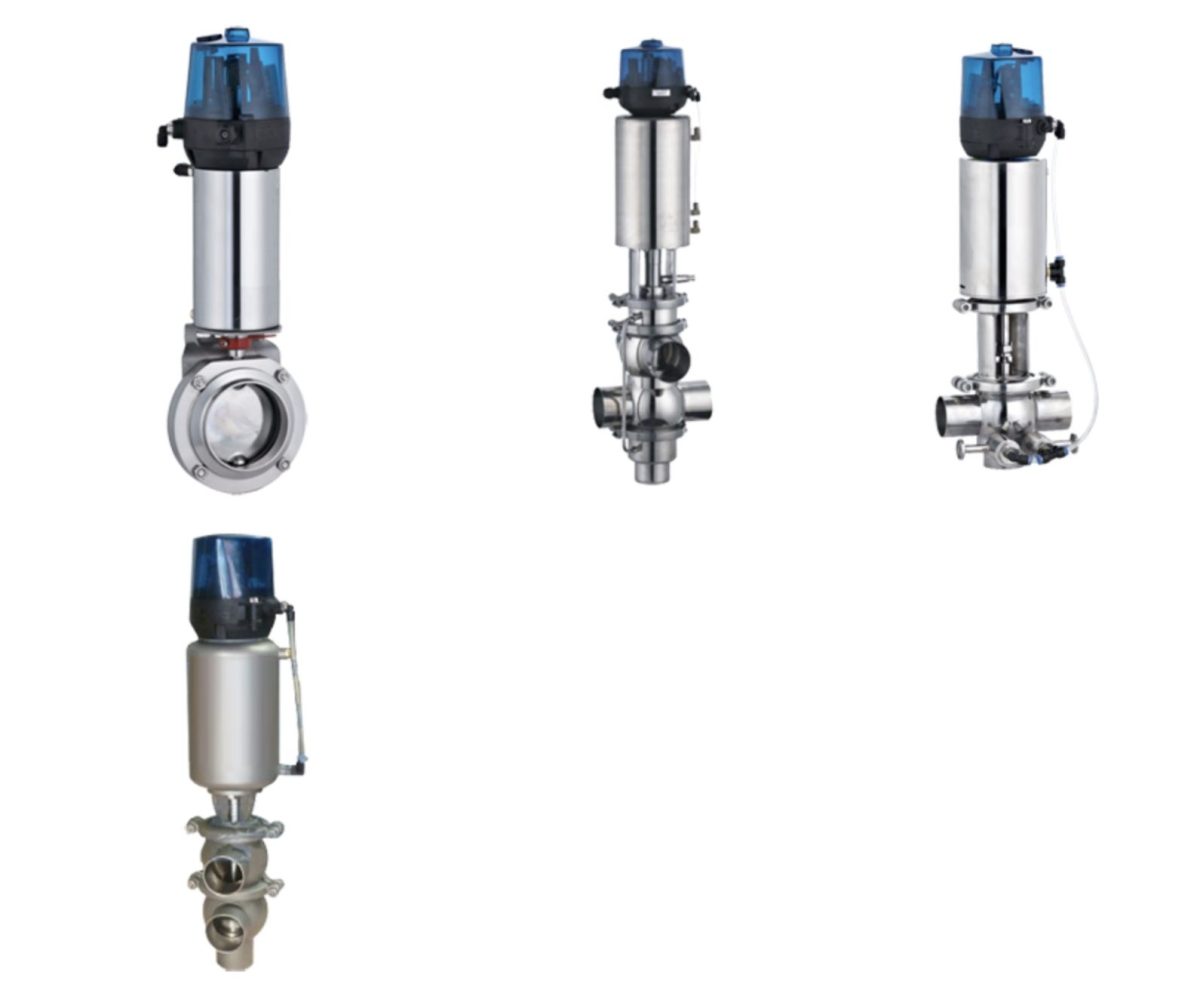

The C-TOP Smart Pneumatic Stainless Butterfly Valve is a high-tech valve that uses wireless technology and smart sensors to monitor and control the flow of fluid or gas in a piping system. It is designed to provide accurate and precise control over the valve’s position, and can be operated remotely using a smartphone or tablet.
Description:
The C-TOP Smart Pneumatic Stainless Butterfly Valve is a state-of-the-art valve designed to regulate the flow of fluids or gases in piping systems using advanced wireless technology and smart sensors. Made from premium-grade stainless steel, this valve is highly durable, corrosion-resistant, and able to withstand high temperatures and pressures.
The butterfly valve is named for its unique design, which features a disc or vane that rotates around a central axis to control the flow of fluid or gas. The C-TOP smart system of this butterfly valve uses wireless technology and smart sensors to monitor the valve’s position and provide precise control over its opening and closing.
The C-TOP Smart Pneumatic Stainless Butterfly Valve is available in a range of sizes to fit various piping systems, and it is easy to install and maintain. Its high-tech construction ensures reliable and accurate performance, making it an ideal choice for a variety of industrial and commercial applications, including the chemical, petrochemical, and pharmaceutical industries.
Whether you need to remotely control the flow of fluid or gas in your piping system or require precise and accurate control over the valve’s position, the C-TOP Smart Pneumatic Stainless Butterfly Valve is an excellent choice. Its advanced technology, durable construction, and reliable performance make it an essential component of any piping system that requires high-tech control over fluid or gas flow.
Application
C-Top Stainless Butterfly valve is a type of flow controller used to stop the fluid flowing through a portion of a fluid start or pipe.
beverage, dairy products, beer, pharmacy and medicine industries are the main areas of use.
Material
Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicone, EPDM, VITON, NBR
Valve seal is compatible with FDA 21CFR177.2600
Standard Design
Standard: DIN, SMS, ISO
DN100 / 4 “dimensions from DN25 / 1” are available
Connection shape: Source – Ferrule – Liner +Somun – Male or Flange or others on request.
Handle: plastic pull arm (4 positions) or plastic/stainless steel
Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
Control: position sensor, C-ball controller, C-ball controller (AS-I)
Manual handle, pneumatic actuator and electric actuator can be replaced.
Technical Specification
Maximum pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)
Feed pressure for air actuator: 70 ~ 115psi
Parameter | |||
| Steel material | Product wet steel parts | AISI304L / 316L (1.4306 / 1.4404) | With the material inspection report |
| Other steel parts | AISI 304 | ||
| Sealing material | Standard | Epdm | All sealants comply with FDA 21CFR117.2600 |
| Options | VMQ / FPM | ||
| Pressure | Working pressure | ≤10bar (145psi) | |
| Air actuator’s feed pressure | 5 ~ 8bar (70 ~ 116psi) | ||
| Temperature | Working temperature | EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ: -58 ~ 356°F (-50 ~ +180°C) FPM: -22 ~ 446°F (-30 ~ +230°C) Other materials are available on request | |
| Sterilization temperature | 302°F (150°C, Max. 20 min) | ||
| Surface treatment | Internal surface treatment | Ra 16 ~ 32μin (0.4 ~ 0.8μm) | |
| Outer surface treatment | Ra32 ~ 64μin (0.8 ~ 1.6μm) | ||
| Connection | Welding diameter | The source ends: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc | |
