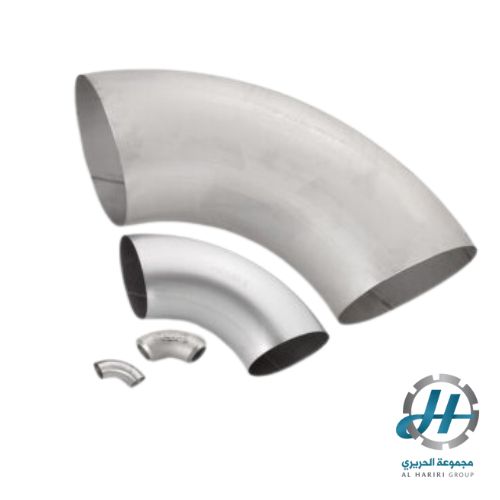

The Stainless Steel Elbow Stitched 90 is a high-quality pipe fitting designed to change the direction of piping in a smooth and efficient manner. Made from premium-grade stainless steel, this elbow is extremely durable and resistant to corrosion, making it ideal for use in a variety of industrial and commercial applications.
Available in sizes ranging from 13.5 mm to 812.8 mm, this elbow is suitable for use with a wide range of piping systems. The 90-degree bend allows for a seamless change in direction, helping to ensure optimal flow rates and performance. The stitched joint provides a strong and reliable connection, ensuring that the elbow will remain securely in place over time.
Whether you are looking to join two sections of pipe or simply redirect the flow of fluid or gas, the Stainless Steel Elbow Stitched 90 is an excellent choice. It is easy to install, versatile, and built to last, making it an essential component of any plumbing or piping system. So if you are in need of a high-quality elbow fitting, look no further than the Stainless Steel Elbow Stitched 90.
Stainless Elbow Stitched 90o
| ISO / EN 10253-4 90° 3 D SEWING STEEL DIMENSIONS | ||
| D (mm) | T (mm) | R (mm) |
| 13.5 | 1.6 | 20 |
| 17.2 | 1.6 | 25 |
| 17.2 | 2 | 25 |
| 18 | 1.5 | 23 |
| 21.3 | 1.6 | 28 |
| 21.3 | 2 | 28 |
| 21.3 | 2.6 | 28 |
| 25 | 1.5 | 37 |
| 25 | 2 | 37 |
| 26.9 | 1.6 | 29 |
| 26.9 | 2 | 29 |
| 26.9 | 2.6 | 29 |
| 28 | 1.5 | 37 |
| 28 | 2 | 37 |
| 30 | 1.5 | 38 |
| 30 | 2 | 38 |
| 33.7 | 1.6 | 38 |
| 33.7 | 2 | 38 |
| 33.7 | 2.6 | 38 |
| 33.7 | 3 | 38 |
| 38 | 1.5 | 52 |
| 38 | 2 | 52 |
| 40 | 1.5 | 60 |
| 40 | 2 | 60 |
| 42.4 | 1.6 | 48 |
| 42.4 | 2 | 48 |
| 42.4 | 2.6 | 48 |
| 42.4 | 3 | 48 |
| 48.3 | 1.6 | 57 |
| 48.3 | 2 | 57 |
| 48.3 | 2.6 | 57 |
| 48.3 | 3 | 57 |
| 51 | 1.5 | 75 |
| 51 | 2 | 75 |
| 60.3 | 1.6 | 76 |
| 60.3 | 2 | 76 |
| 60.3 | 2.6 | 76 |
| 60.3 | 3 | 76 |
| 60.3 | 3.6 | 76 |
| 60.3 | 4 | 76 |
| 70 | 2 | 95 |
| 76,1 | 2 | 95 |
| 76,1 | 2,6 | 95 |
| 76,1 | 3 | 95 |
| 76,1 | 3,6 | 95 |
| 76,1 | 4 | 95 |
| 88,9 | 2 | 114 |
| 88,9 | 2,6 | 114 |
| 88,9 | 3 | 114 |
| 88,9 | 4 | 114 |
| 101,6 | 2 | 133 |
| 101,6 | 3 | 133 |
| 104 | 2 | 150 |
| 114,3 | 2 | 152 |
| 114,3 | 2,6 | 152 |
| 114,3 | 3 | 152 |
| 114,3 | 3,6 | 152 |
| 114,3 | 4 | 152 |
| 129 | 2 | 188 |
| 139,7 | 2 | 190 |
| 139,7 | 2,6 | 190 |
| 139,7 | 3 | 190 |
| 139,7 | 4 | 190 |
| 154 | 2 | 225 |
| 156 | 3 | 225 |
| 168,3 | 2 | 229 |
| 168,3 | 2,6 | 229 |
| 168,3 | 3 | 229 |
| 168,3 | 4 | 229 |
| 204 | 2 | 300 |
| 206 | 3 | 300 |
| 219,1 | 2 | 305 |
| 219,1 | 2,6 | 305 |
| 219.1 | 3 | 305 |
| 219.1 | 4 | 305 |
| 254 | 2 | 350 |
| 256 | 3 | 350 |
| 273 | 2 | 381 |
| 273 | 2.6 | 381 |
| 273 | 3 | 381 |
| 273 | 4 | 381 |
| 323.9 | 2 | 457 |
| 323.9 | 3 | 457 |
| 355.6 | 3 | 533 |
| 355.6 | 4 | 533 |
| 406.4 | 3 | 610 |
| 406.4 | 4 | 610 |
| 457 | 4 | 686 |
| 508 | 5 | 762 |
| 609.6 | 6 | 914 |
| 711.2 | 6 | 762 |
| 812.8 | 6 | 1219 |
