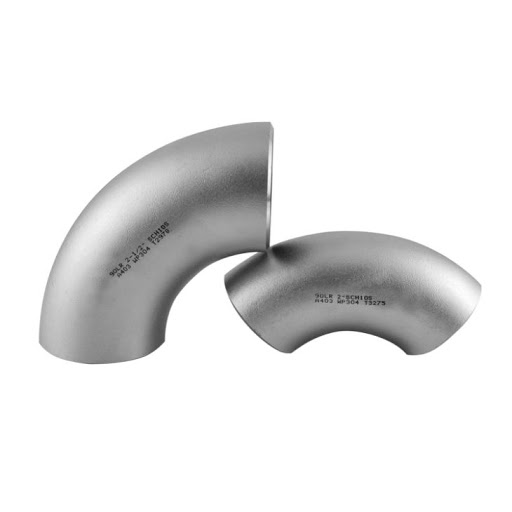

Product: Stainless Steel Elbow Seamless
Function:
The Stainless Steel Elbow Seamless is a type of pipe fitting used to change the direction of flow in a piping system. It has a smooth, seamless finish which ensures that there is no leakage or loss of pressure in the system. The elbow is made from high-quality stainless steel which makes it suitable for use in a wide range of applications, including chemical processing, oil and gas, pharmaceuticals, and food and beverage.
Description:
The Stainless Steel Elbow Seamless is a precision-engineered pipe fitting that is designed to provide a seamless, leak-free connection in a piping system. It is available in a range of sizes and configurations to meet the specific needs of different applications. The elbow is made from high-quality stainless steel which provides excellent resistance to corrosion, high temperatures, and extreme pressures.
The seamless finish of the Stainless Steel Elbow ensures that there is no loss of pressure or leakage in the piping system, which makes it ideal for use in applications where fluid flow and pressure are critical. The elbow is easy to install and requires minimal maintenance, making it a cost-effective and reliable solution for piping systems.
Call to action:
If you are looking for a high-quality, reliable pipe fitting for your piping system, the Stainless Steel Elbow Seamless is an excellent choice. Contact us today to learn more about our range of Stainless Steel Elbow Seamless fittings and how they can benefit your application.
Stainless Elbow Seamless ASTM-A403 ANSI B16.9 Sch 10s – Sch 40s
| ASTM A403-ANSI B 16.9 90° SEWARDEN VIRTY SIZES | ||||
| INCH | D (mm) | T (mm) | SCH | R (mm) |
| 1.65 | 10S | 20 | ||
| 1/4 “ | 13.5 | 2.24 | 40S | 20 |
| 3.02 | 80S | 20 | ||
| 1.65 | 10S | 25 | ||
| 3/8 “ | 17.15 | 2.31 | 40S | 25 |
| 3.2 | 80S | 25 | ||
| 2.11 | 10S | 38 | ||
| 1/2″ | 21.34 | 2.77 | 40S | 38 |
| 3.73 | 80S | 38 | ||
| 2.11 | 10S | 38 | ||
| 3/4 “ | 26.67 | 2.87 | 40S | 38 |
| 3.91 | 80S | 38 | ||
| 2.77 | 10S | 38 | ||
| one” | 33.4 | 3.38 | 40S | 38 |
| 4.55 | 80S | 38 | ||
| 2.77 | 10S | 48 | ||
| 1 1/4 “ | 42.16 | 3.56 | 40S | 48 |
| 4.85 | 80S | 48 | ||
| 2.77 | 10S | 57 | ||
| 1 1/2 “ | 48.26 | 3.68 | 40S | 57 |
| 5.08 | 80S | 57 | ||
| 2.77 | 10S | 76 | ||
| 2nd” | 60.3 | 3.91 | 40S | 76 |
| 5.54 | 80S | 76 | ||
| 2.11 | 10S | 95 | ||
| 2 1/2 “ | 76.1 | 3.05 | 40S | 95 |
| 5.16 | 80S | 95 | ||
| 3.05 | 10S | 114 | ||
| 3″ | 88.9 | 5.49 | 40S | 114 |
| 7.62 | 80S | 114 | ||
| 3.05 | 10S | 152 | ||
| 4″ | 114.3 | 6.02 | 40S | 152 |
| 8.56 | 80S | 152 | ||
| 2.77 | 5S | 190 | ||
| 5″ | 141.3 | 3.4 | 10S | 190 |
| 6.55 | 40S | 190 | ||
| 2.77 | 5S | 229 | ||
| 6″ | 168.3 | 3.4 | 10S | 229 |
| 7.11 | 40S | 229 | ||
| 2.77 | 5S | 305 | ||
| 8″ | 219.1 | 3.76 | 10S | 305 |
| 8.18 | 40S | 305 | ||
| 3.4 | 5S | 381 | ||
| 10″ | 273 | 4.19 | 10S | 381 |
| 9.27 | 40S | 381 | ||
| 3.96 | 5S | 457 | ||
| 12 “ | 323.9 | 4.57 | 10S | 457 |
| 9.53 | 40S | 457 | ||
| 3.96 | 5S | 533 | ||
| 14 “ | 355.6 | 4.78 | 10S | 533 |
| 4.19 | 5S | 610 | ||
| 16 “ | 406.4 | 4.78 | 10S | 610 |
