A range of SLA Lobe pump has been developed for general applications in the Dairy, Beverage, Food, Chemical, and Personal Care industries.
The following are benefits that users can enjoy:
- Excellent efficiency
- Reduced energy consumption
- Compact dimensions
- Consistent flow
- Reversible operation
- Minimal shear when pumping
- Minimal agitation of the pumped media
- Easy maintenance
- Sanitary design
Applications:
The SLA range of rotary lobe pumps is designed to combine cost-effective simplicity and easy maintenance with TMX quality and reliability, making it suitable for general applications within the Dairy, Beverage, Food, Chemical, and Personal Care industries. This pump can handle liquids with low or high viscosity and can be fully cleaned with CIP.

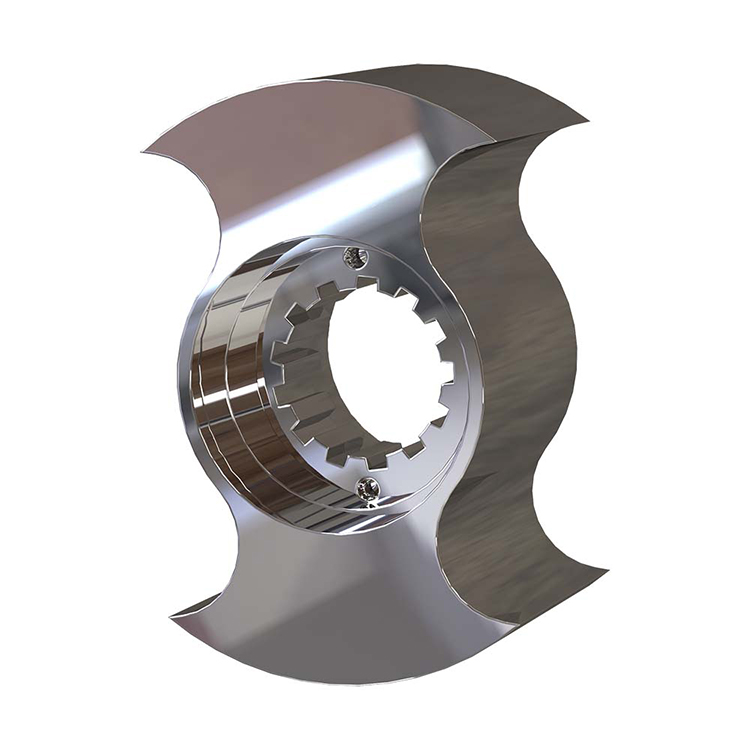

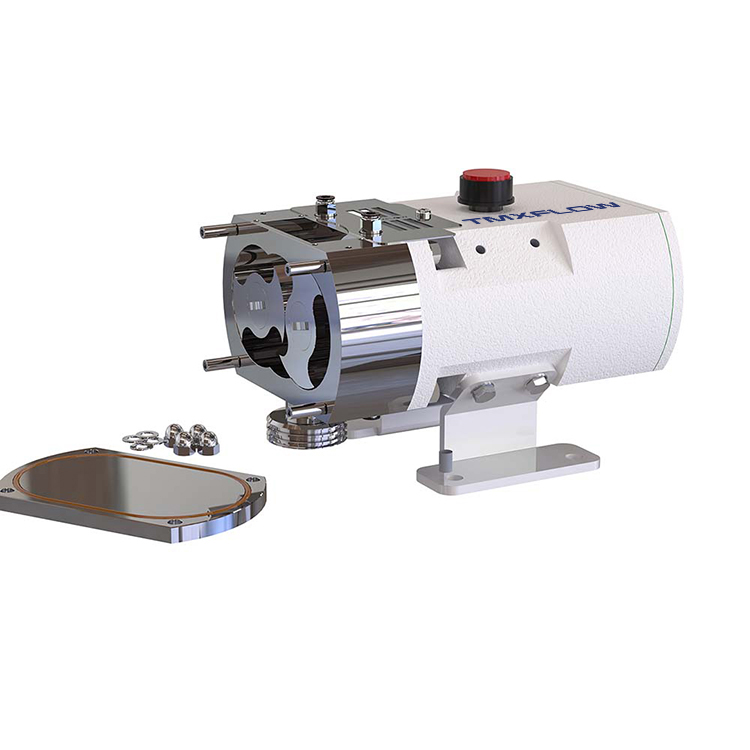

It is particularly useful for filtration and bottling applications where products containing brittle solids such as curd need to be pumped without damage. The pump’s specially designed lobes allow for easy inspection or replacement without disassembling the pipework.

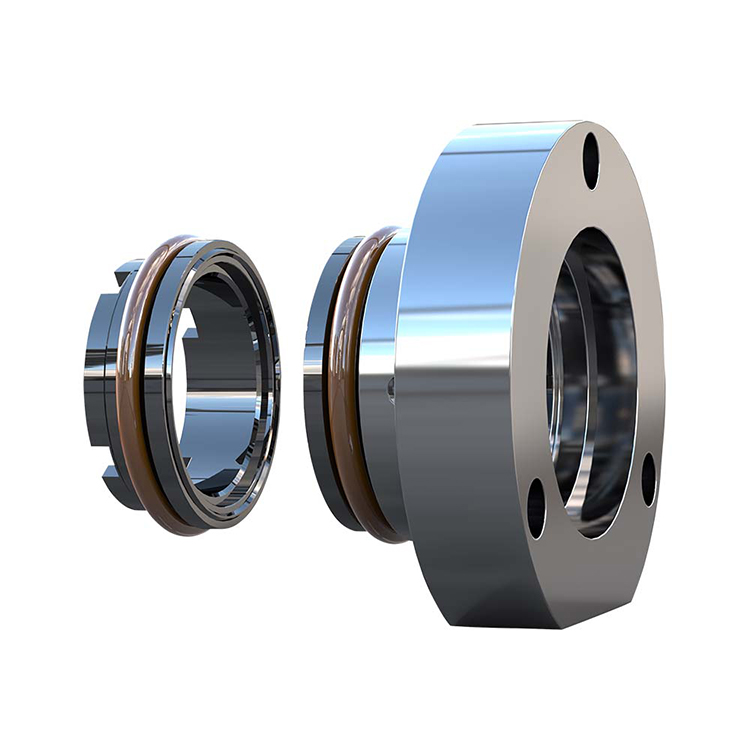

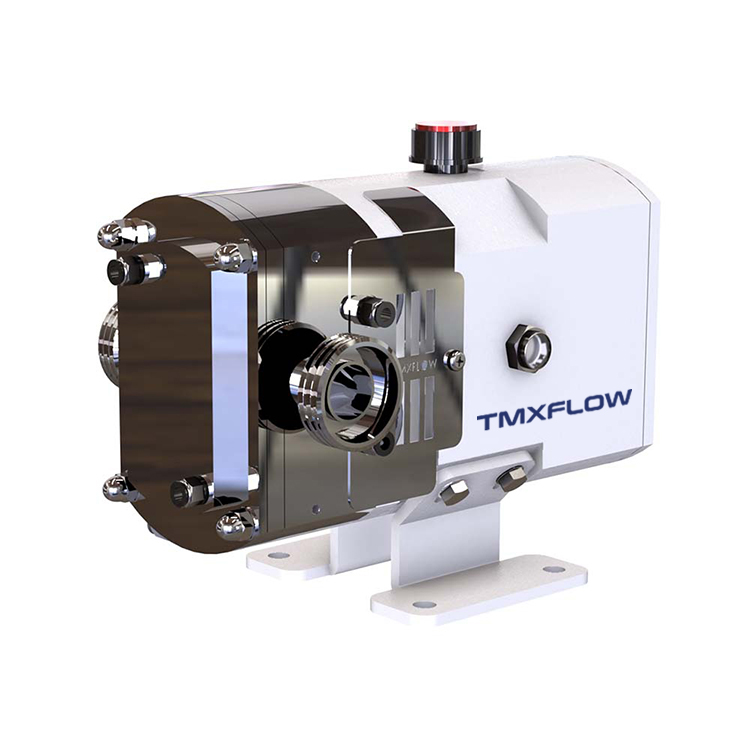

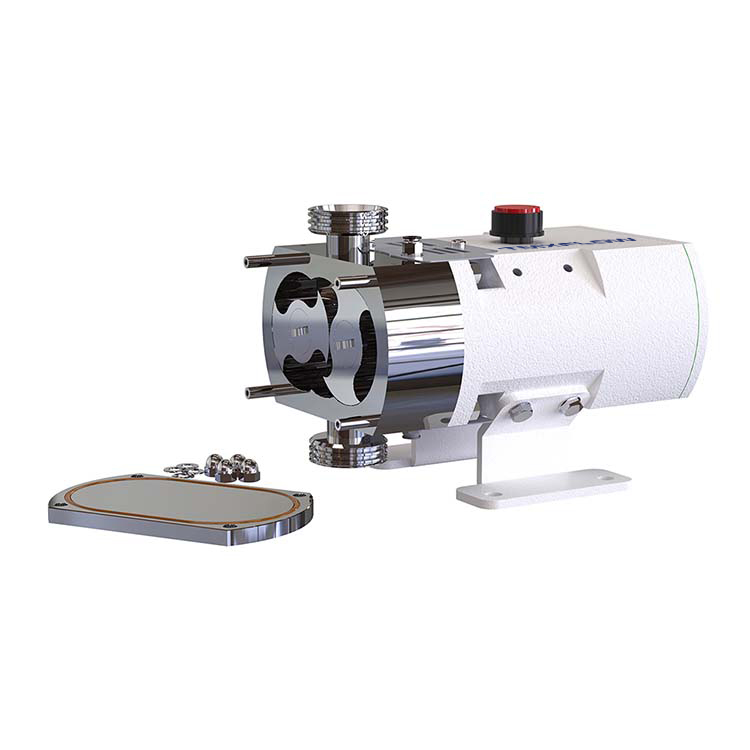

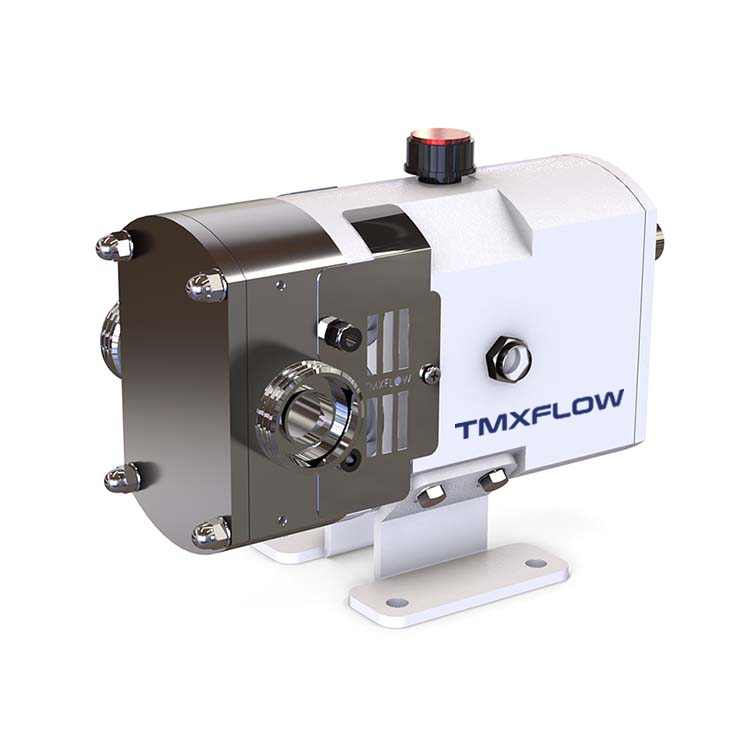

The SLA pump is a bare shaft rotary lobe pump with a stainless steel casing, cover, and two-lobe rotors with a sanitary attachment. It comes with an internal mechanical seal that is EHEDG approved, balanced, and hygienic in design. Other materials can be used as needed.
The compact and efficient SLA pump range can handle flow rates up to 122m3/h and pressures up to 12 bar.

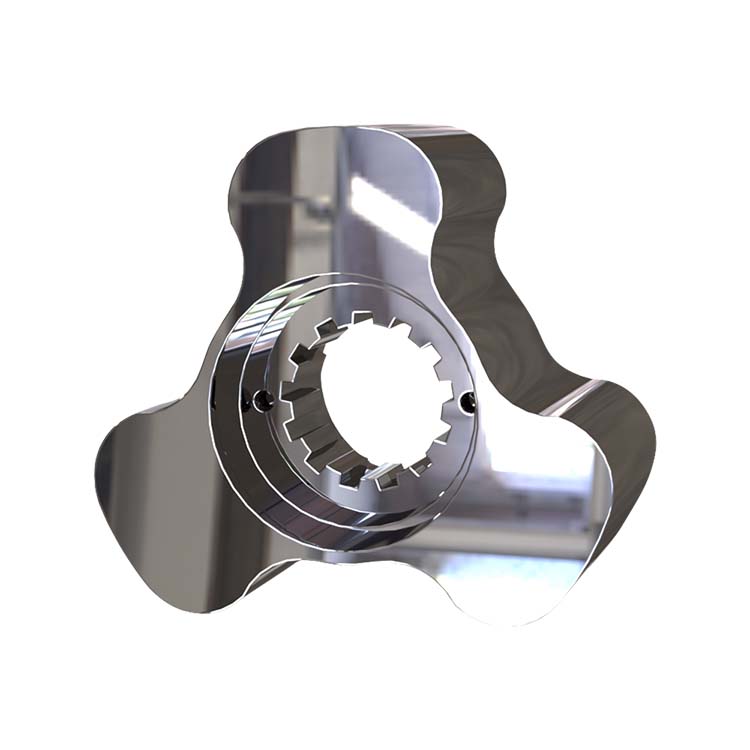

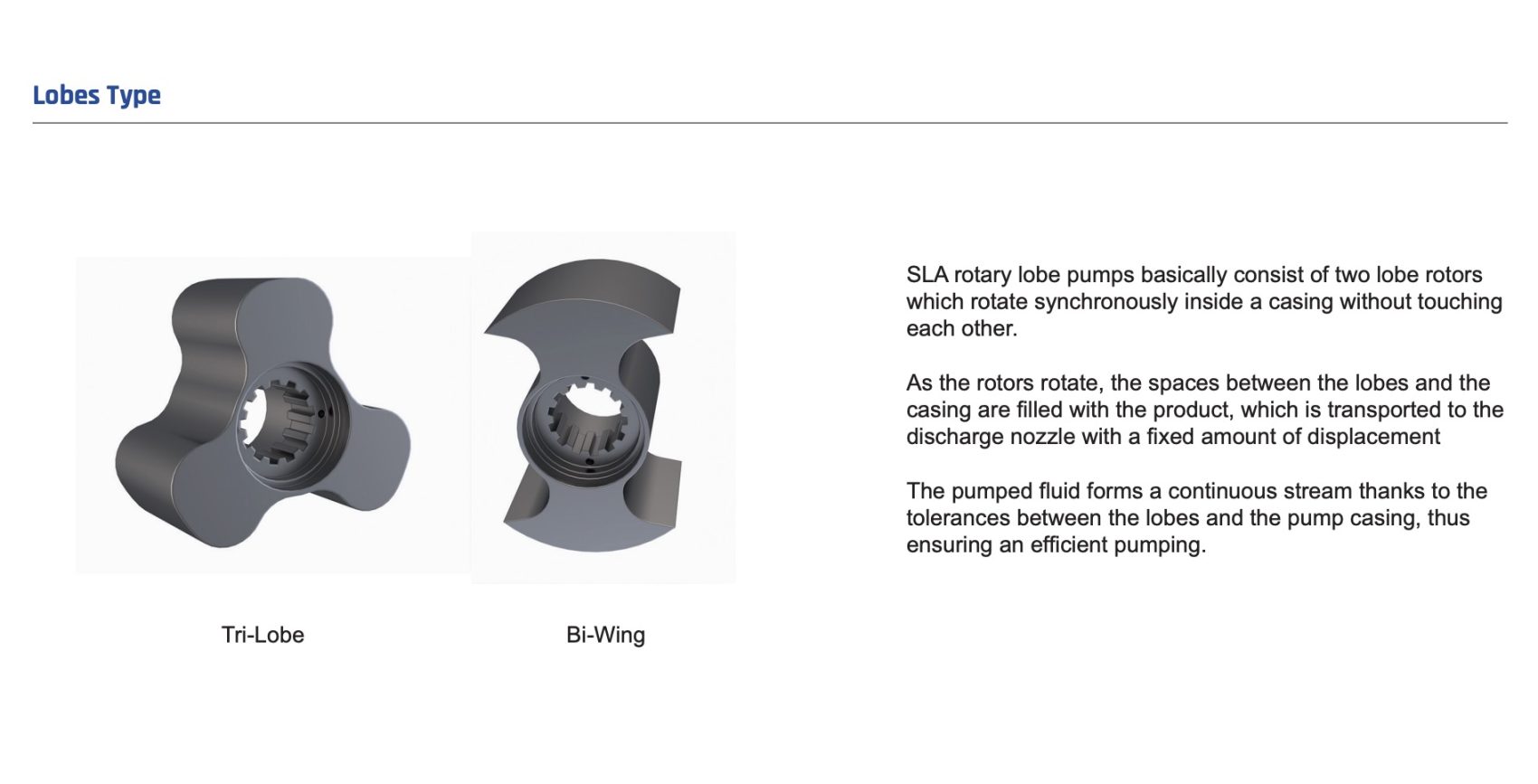

The Series SLA pump achieves positive displacement through the use of non-contacting, contra-rotating two or three-lobe rotors that operate within a fully swept pump chamber.
Materials
- Pump Head Housing: AISI 316L
- Gaskets: EPDM or FPM
- Gear Box: GG25
- Shafts: Duplex Stainless Steel
- Shaft Seal: Single,Double Mechanical Seal
- Surface Finish: Ra<0,8 μm
- Connections: DIN 11851, SMS, ISO, Clamp

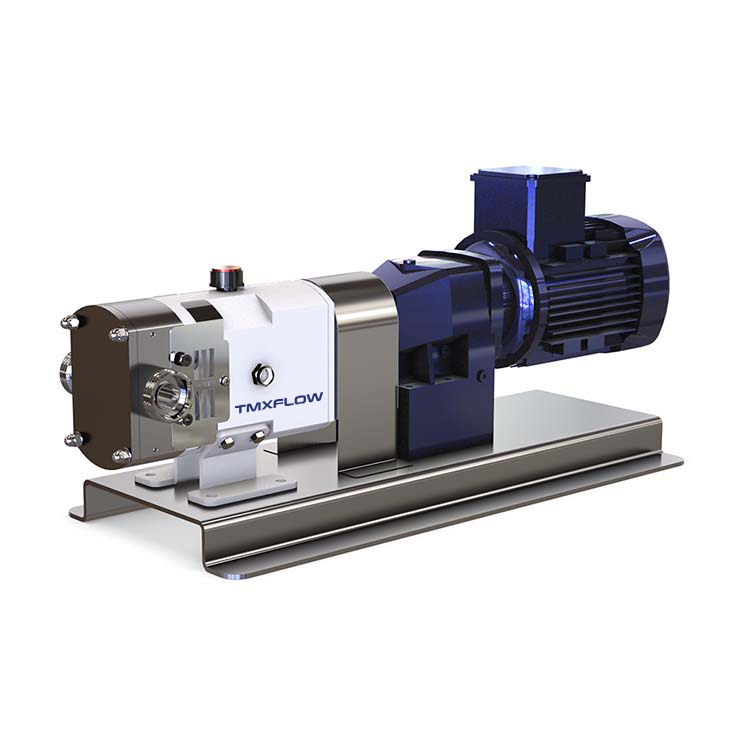

- Base Plate: Stainless Steel

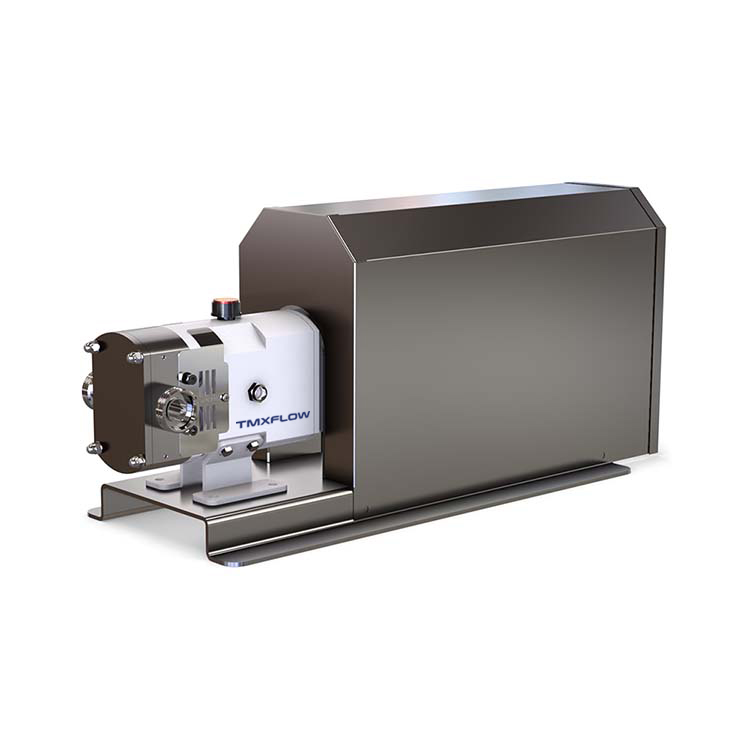

- Coupling Guard: Stainless Steel

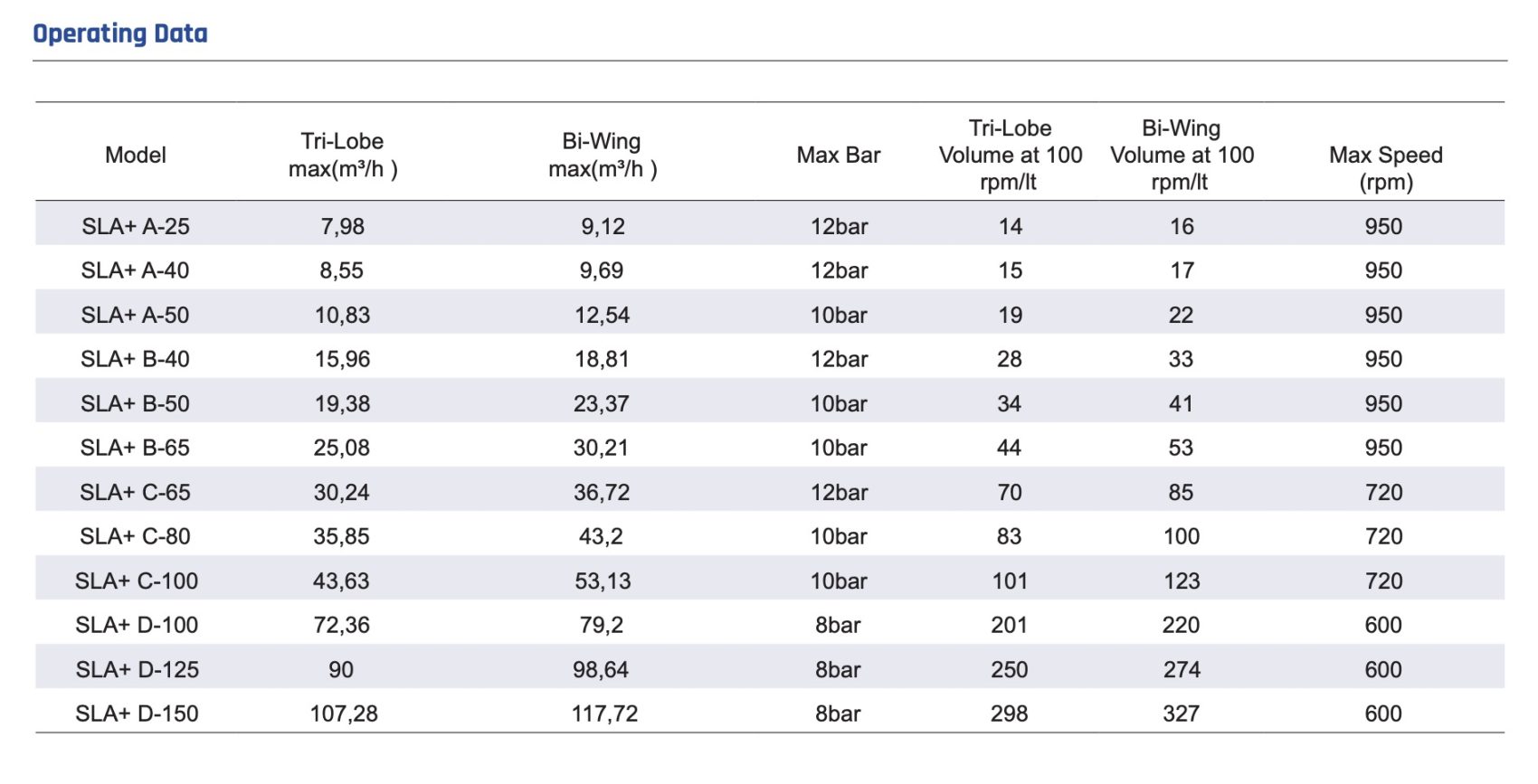

Operating Limits
- Maximum flow: 122 m3/h
- Maximum differential pressure: 12 bar
- Maximum working pressure: 12 bar
- Temperature range (EPDM): -10 °C to +120 °C
- Temperature CIP, max. 30 min: +140 °C
- Maximum speed: 950 rpm
