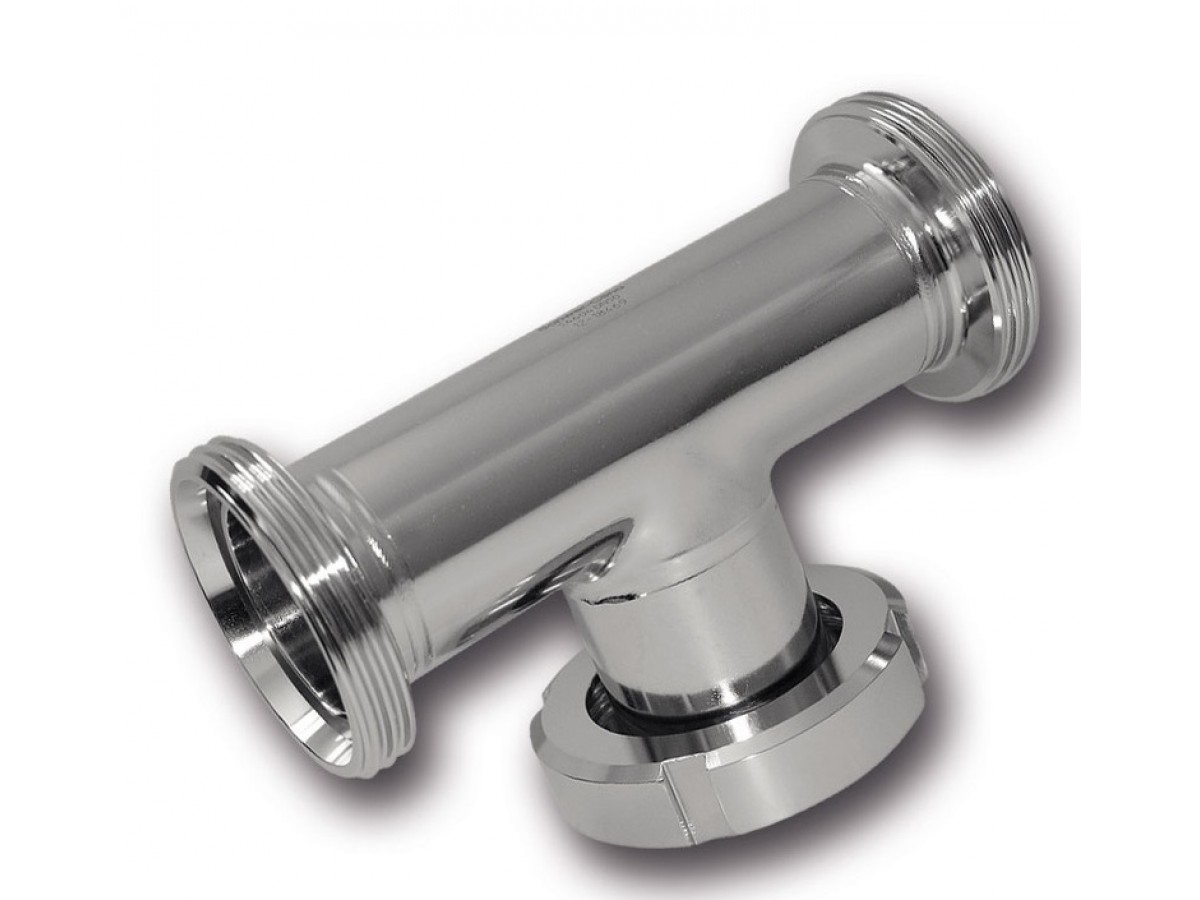

Product: Male – Liner Linked Stainless Tee Food Grade 304/316L Sanitary
Function:
The Male – Liner Linked Stainless Tee is a three-way fitting that allows for the smooth flow of fluids or powders in sanitary systems. It is made of food-grade 304/316L stainless steel, which is durable, corrosion-resistant, and easy to clean. The tee’s male and liner-linked design ensures a secure connection and reduces the risk of leakage or contamination. It has a high-pressure rating and is suitable for use in various applications, including food and beverage processing, pharmaceuticals, and cosmetics.
Description:
This Male – Liner Linked Stainless Tee is designed for use in sanitary systems where hygiene is critical. It is made of high-quality food-grade 304/316L stainless steel, which is resistant to rust, corrosion, and harsh chemicals. The tee’s male and liner-linked design ensures a secure connection and easy installation, making it suitable for various applications. Its polished finish also makes it easy to clean, ensuring that there is no build-up of contaminants or bacteria.
The tee is available in various sizes and configurations to suit different needs. Its construction meets or exceeds industry standards, ensuring that it is safe and reliable. This tee is ideal for use in food and beverage processing, pharmaceuticals, cosmetics, and other industries where cleanliness is essential.
Call to action:
If you need a reliable and hygienic tee for your sanitary system, the Male – Liner Linked Stainless Tee is an excellent choice. It is made of high-quality materials and meets industry standards, ensuring that it is safe and reliable. Contact us today to learn more about our Male – Liner Linked Stainless Tee and other sanitary fittings we offer.
Technical Specification
Maximum pressure: 10bar (145psi)
Working Pressure: 0.3bar (DN25) 0.2bar (DN32-40) 0.1bar (DN50-100).
Working temperature: 14 ~ 248°F (-10 ~ 120°C), EPDM
Application
Stainless Steel Tee Parts are used in non-machining installations where process pipes and equipment can be cleaned in place (CIP) and removed from the system. Stainless Steel Tee is available in nominal tube sizes.
In T304 and T316L materials between 1/2 and 8. 1/2 to 3 dimension lutek type wall thickness 0.065 (16 ga) is measured. It is in 4-dimensional wall thickness meters. 083 (14 ga), 6 and 8 0.109 (12 ga).
Material
Quality: AISI-304 and AISI-316L
Standard Design
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
Connection Shape: Source – Ferrule – Liner+Somun – Male
Measuring Range: 1/2″-8 “or DN10-DN200

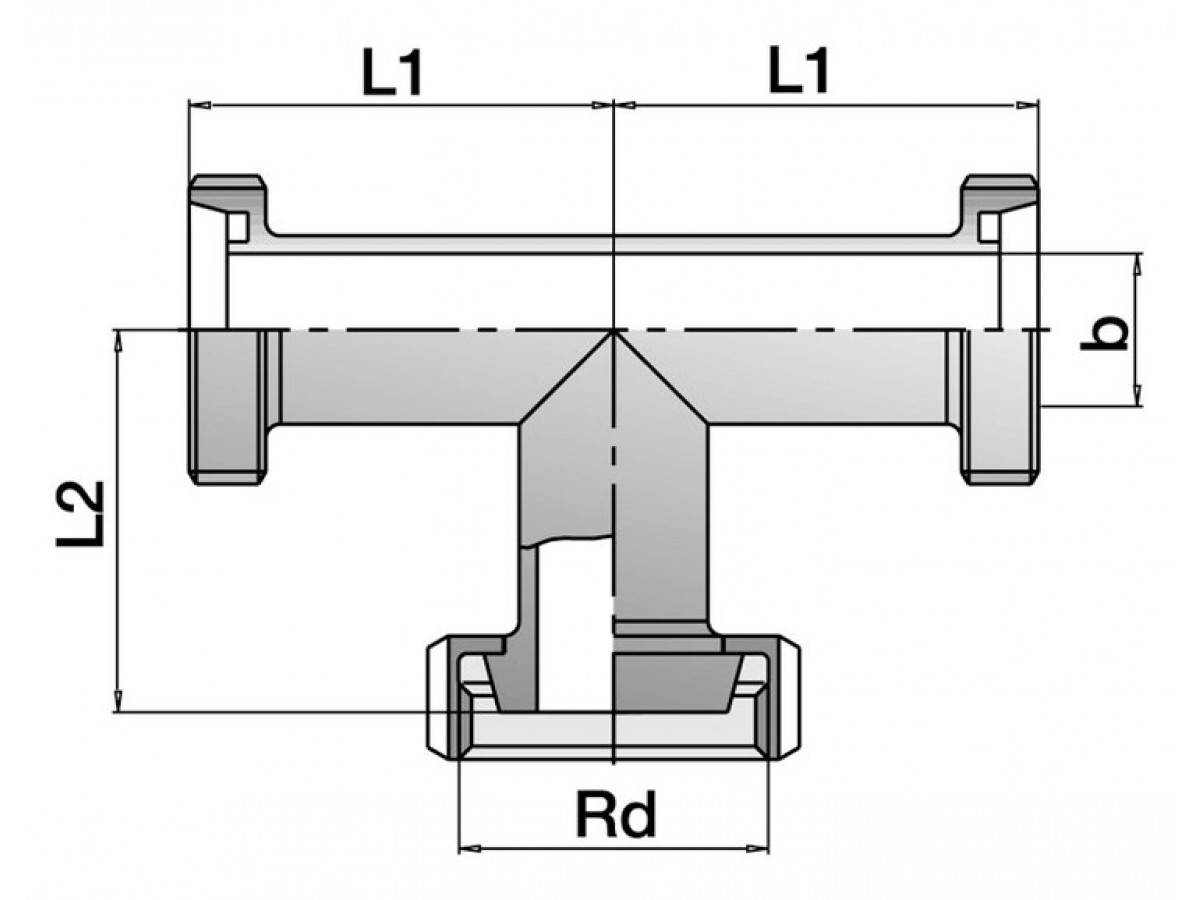

| DN | Rd | b | L1 | L2 | Stainless tee – round thread – conical thread – round thread DIN 11851 |
|---|---|---|---|---|---|
| DIN 11851 Aseptic tee with round and conical thread DN10 | 28×1/8 “ | 9 | 43 | 39 |  |
| DIN 11851 Aseptic tee with round and conical thread DN15 | 34×1 / 8 “ | 15 | 52 | 48 | |
| DIN 11851 Aseptic tee with round and conical thread DN20 | 44×1 / 6 “ | 19 | 59 | 53 | |
| DIN 11851 Aseptic tee with round and conical thread DN25 | 52×1/6 “ | 25 | 72 | 65 | |
| DIN 11851 Aseptic tee with round and conical thread DN32 | 58×1 / 6 “ | 31 | 77 | 70 | |
| DIN 11851 Aseptic tee with round and conical thread DN40 | 65×1 / 6 “ | 37 | 82 | 75 | |
| DIN 11851 Aseptic tee with round and conical thread DN50 | 78×1/6 “ | 49 | 93 | 86 | |
| DIN 11851 Aseptic tee with round and conical thread DN65 | 95×1 / 6 “ | 66 | 105 | 97 | |
| DIN 11851 Aseptic tee with round and conical thread DN80 | 110×1/4 “ | 81 | 115 | 107 | |
| DIN 11851 Aseptic tee with round and conical thread DN100 | 130×1/4 “ | 100 | 130 | 120 | |
| DIN 11851 Aseptic tee with round and conical thread DN125 | 160×1 / 4 “ | 125 | 233.5 | 221.5 | |
| DIN 11851 Aseptic tee with round and conical thread DN150 | 190×1/4 “ | 150 | 275 | 262 | |
| All sizes in mm Available in 304/304L (1.4301 / 1.4307) & 316L (1.4404) Other grades and sizes on request | |||||
