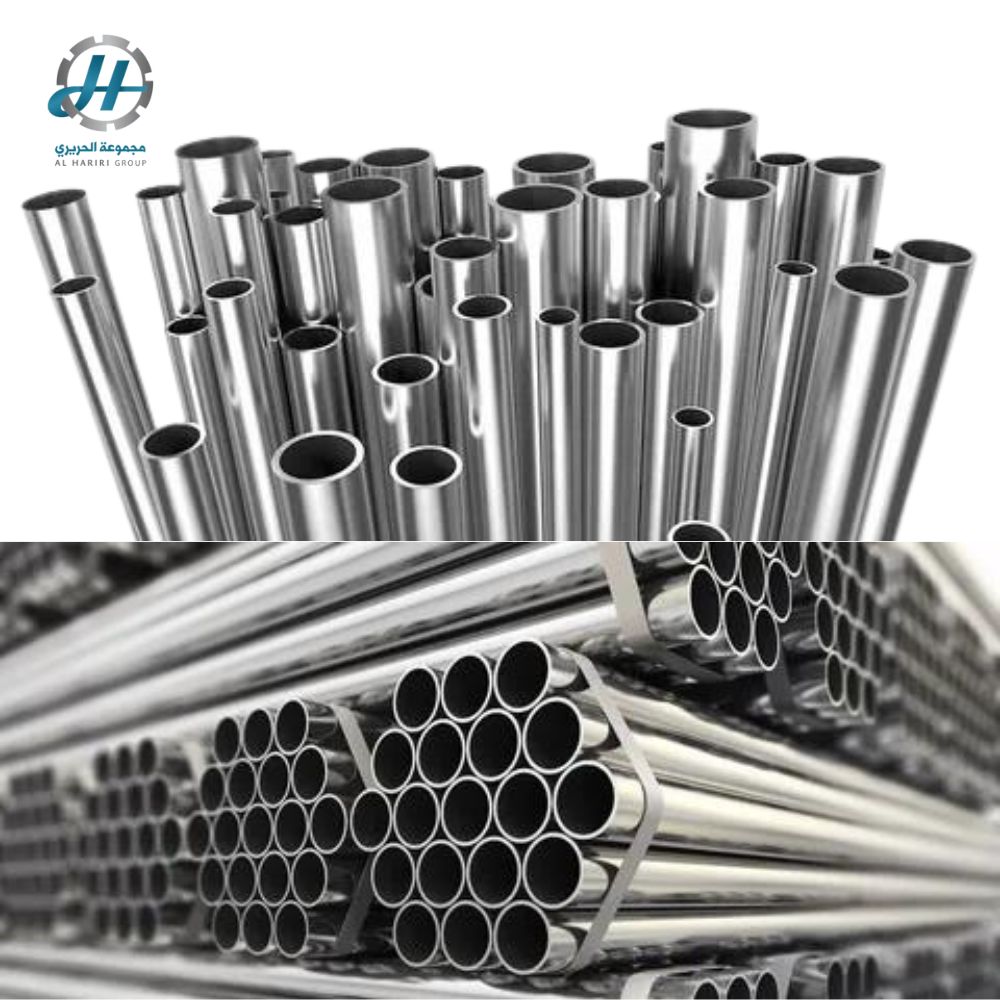

Stainless Pipe Stitched

We appreciate your interest in our Stainless Pipe Stitched. Feel free to reach out to our sales team by filling out the "Product Inquiry" form below. To ensure an accurate price estimate, please include essential details such as your machine's capacity and the specific product intended for filling. We're here to assist you in making informed decisions and finding the best solutions for your needs. Thank you for looking at our products!

Send Your Inquiry Now

Category: Stainless Pipe & Profiles Tag: stainless steel pipes

Description

We sell stainless steel pipes in AISI 304 – 304L-321-316L-316Tiöstenitic EN 1027-7 / EN 10357 / DIN 11850 from stock

Our existing stocks cover pipes with a minimum thickness of 6 mm to a maximum diameter of 219.1 mm and a minimum thickness of 1.0 mm to a maximum of 4 mm.

Our pipes are produced from hot and cold rolled sheets and:

– Brushed
– In-police
– With or without a backgammon
– Polisajli (180 – 240 – 320 – 400 grit)
– Mirror Polishing (inside and/or externally)
– Their height is fixed 6 meters long.

Stainless Pipe Stitched

EN 10217-7 Stainless Pipe AISI 304 – 304L – 321- 316 – 316L – 316Ti

Thickness mm
Ø Outer diameter mm		0.8	1	1.2	1.5	1.6	2	2.5	2.6	3	3.2	3.6	4	5
6		0.104	0.125
8		0.144	0.175
10		0.184	0.225	0.264	0.319	0.337
12		0.224	0.275	0.325	0.394	0.417
13		0.244	0.3	0.355	0.432
14		0.264	0.326	0.385	0.47	0.497	0.601
15		0.284	0.351	0.415	0.507	0.537	0.651
16		0.304	0.376	0.445	0.545	0.577	0.701
17.2	3/8″	0.329	0.406	0.481	0.59	0.625	0.761	0.92	0.951
18		0.345	0.426	0.505	0.62	0.657	0.801	0.97	1.003
19		0.365	0.451	0.535	0.657	0.697	0.851	1,033	1,068
19.05		0.366	0.452	0.536	0.659	0.699	0.854	1,036	1,071
20		0.385	0.476	0.565	0.695	0.737	0.901	1,096	1,133
21.3	1/2″	0.411	0.508	0.604	0.744	0.789	0.967	1,177	1,217
22		0.425	0.526	0.625	0.77	0.817	1.002	1,221	1,263
23		0.445	0.551	0.655	0.808	0.857	1,052	1,283	1,328
25		0.485	0.601	0.715	0.883	0.937	1,152	1,409	1,458	1,653
25.4		0.493	0.611	0.727	0.898	0.954	1,172	1,434	1,484	1,683
26.9	3/4″	0.523	0.649	0.772	0.954	1,014	1,247	1,527	1,582	1,795
28		0.545	0.676	0.805	0.995	1,058	1,302	1,596	1,654	1,878
30		0.585	0.726	0.865	1.07	1,138	1,402	1,722	1,784	2,028	2,147
31.8		0.621	0.771	0.919	1,138	1.21	1,492	1,834	1,901	2,163	2,292
32		0.625	0.776	0.925	1,146	1,218	1,502	1,847	1,914	2,178	2,308
33		0.645	0.801	0.956	1,183	1,258	1,552	1,909	1,979	2,254	2,388
33.7	1″	0.659	0.819	0.977	1,209	1,286	1,588	1,953	2,025	2,306	2,444
34		0.665	0.826	0.986	1,221	1,298	1,603	1,972	2,044	2,329	2,468
35		0.685	0.851	1,016	1,258	1,338	1,653	2.035	2,109	2,404	2,548
38		0.745	0.926	1,106	1,371	1,458	1,803	2,222	2,305	2,629	2,788
38.1		0.747	0.929	1,109	1,375	1,462	1,808	2,229	2,311	2,637	2,796
40		0.785	0.977	1,166	1,446	1,538	1.903	2,348	2,435	2,779	2,949
42		0.825	1,027	1,226	1,521	1,619	2.003	2,473	2,565	2.93	3,109
42.4	1″1/4	0.833	1,037	1,238	1,536	1,635	2,023	2,498	2,591	2.96	3,141
43		0.845	1,052	1,256	1,559	1,659	2,053	2,535	2.63	3.005	3,189
44.5		0.875	1,089	1,301	1,615	1,719	2,128	2,629	2,728	3,117	3,309
45		0.885	1,102	1,316	1,634	1,739	2,153	2,661	2.76	3,155	3,349
48.3	1″ 1/2	0.952	1,184	1,415	1,758	1,871	2,319	2,867	2,975	3,403	3,614
50		0.986	1,227	1,466	1,822	1,939	2,404	2,974	3,086	3531	3.75
50.8		1.002	1,247	1.49	1,852	1,971	2,444	3,024	3,138	3,591	3,814
51		1.006	1,252	1,496	1,859	1,979	2,454	3,036	3,151	3,606	3.83
52		1,026	1,277	1,526	1,897	2,019	2,504	3,099	3,216	3,681	3.91
53		1,046	1,302	1,556	1,934	2,059	2554	3,161	3,281	3,756	3,99
54		1.066	1,327	1,587	1,972	2,099	2,604	3,224	3,346	3,831	4.071
56.5		1,116	1.39	1,662	2,066	2.2	2,729	3.38	3,509	4,019	4,271	4,769
57		1,126	1,402	1,677	2,085	2.22	2,574	3,412	3,542	4,056	4,311	4,814
58.2		1.15	1,432	1,713	2.13	2,268	2,814	3,487	3.62	4,147	4,407	4,922
60		1,186	1,477	1,767	2,197	2.34	2.905	3.6	3,737	4,282	4551	5,084	5,609
60.3	2″	1,192	1,485	1,776	2,209	2,352	2.92	3,618	3,757	4,304	4,575	5,111	5,639
63.5		1,256	1,565	1,872	2,329	2.48	3.08	3,819	3.965	4,545	4,832	5.4	5.96
64		1,266	1,578	1,887	2,348	2.5	3.105	3.85	3,997	4,582	4,872	5,445	6.01
66.6		1,318	1,643	1,965	2,445	2,604	3,235	4,013	4,167	4,778	5.08	5,679	6.27
70				2,067	2,573	2.74	3,405	4,226	4,388	5,033	5,353	5,986	6,611
73				2,157	2,686	2,861	3556	4,413	4,583	5,258	5,593	6,256	6,911
76.1	2″ 1/2			2,251	2,802	2,985	3,711	4,607	4,785	5,491	5,841	6,535	7,222
80				2,368	2,948	3,141	3.906	4,852	5.039	5,784	6,154	6,887	7,612
83				2,458	3,061	3,261	4,056	5.039	5,234	6.01	6,394	7,157	7,913
84				2,488	3,099	3,301	4.107	5,102	5,299	6.085	6,474	7,248	8,013
85				2,518	3,136	3,341	4,157	5,165	5,365	6.16	6,554	7,338	8,113
88.9	3″			2,635	3,283	3,498	4,352	5,409	5,618	6,453	6,867	7,689	8,504
100				2,969	3.7	3,942	4.908	6.104	6,341	7,287	7,756	8.69	9,615
101.6	3″1/2			3,017	3.76	4.006	4,988	6,204	6,445	7,407	7,885	8,834	9,776
104				3,089	3.85	4.103	5.108	6,354	6,602	7,587	8,077	9.05	10.016	12,395
108				3,209	4	4,263	5,308	6,604	6,862	7,888	8,397	9,411	10,417	12,896
114.3	4″			3,398	4,237	4,515	5,624	6,999	7,272	8,361	8,902	9,979	11,048	13,684
129	4″1/2				4,789	5,104	6.36	7,919	8,229	9,465	10.08	11,304	12.52	15,525
139.7	5″				5,191	5,533	6,896	8,589	8,926	10,269	10,937	12,269	13,592	16,864
154							7,612	9,484	9,857	11,343	12,083	13,558	15,024	18,655
168.3	6″						8,328	10,379	10,788	12,417	13,229	14,847	16,456	20,445
204							10,116	12,614	13,112	15,099	16.09	18.065	20.032	24,915
219.1	8″						10,872	13,559	14,095	16,233	17.3	19,426	21,544	26,805
